Deep Drawing

Hollow parts from a shallow pan to a 300mm drum. Single and multi-step drawing with wall thickness progression held inside your tolerance.

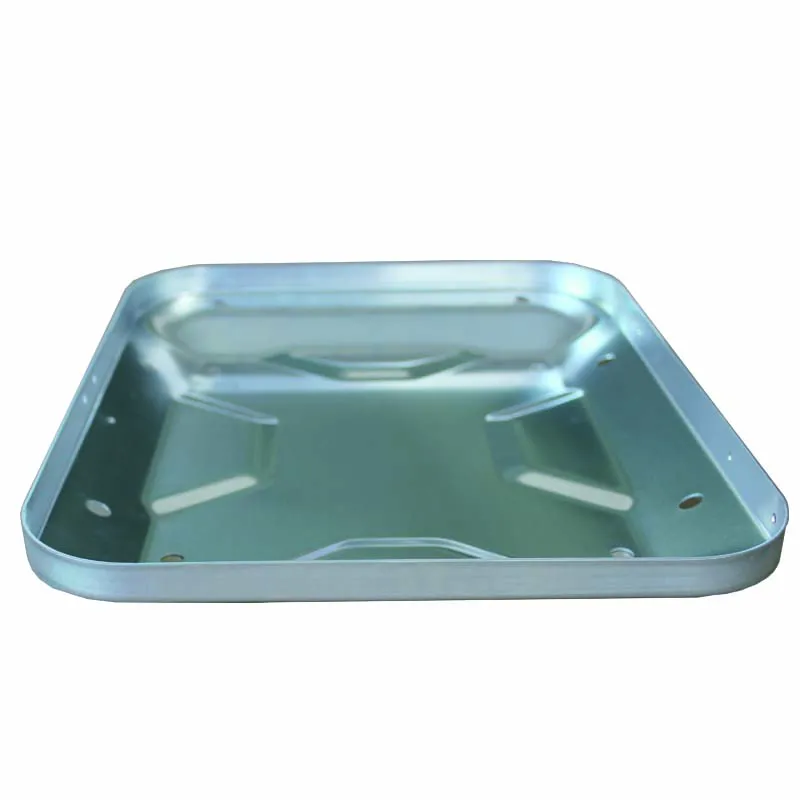

Deep drawn aluminium enclosures showing smooth draw walls
Sheet Metal FabricationCut · Bend · Weld · Assemble Precision Stamping0.1–10mm · Progressive dies Deep DrawingHollow parts up to 300mm CNC Machining3/4/5-axis · ±0.02mm
up to 300mmMax diameter
up to 400THydraulic press
Multi-stepUp to 6 draws
0.3mmMin wall thickness
Product Catalogue

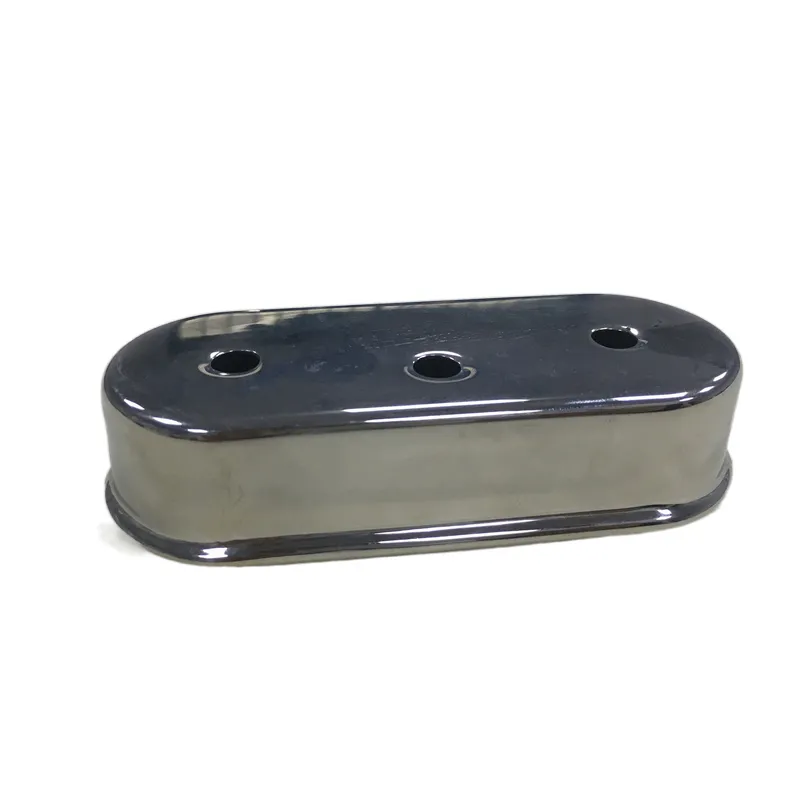

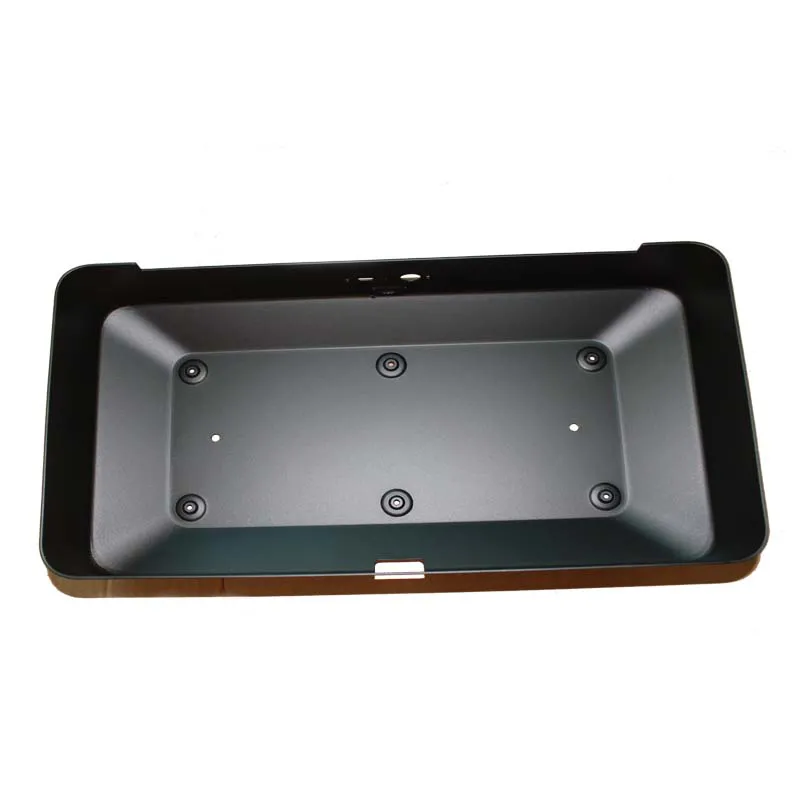

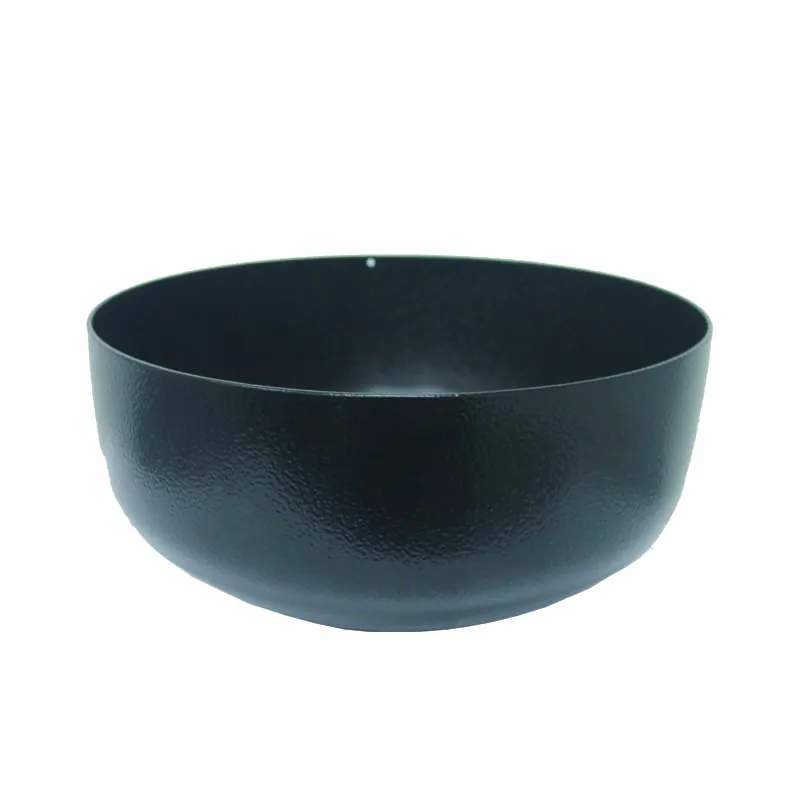

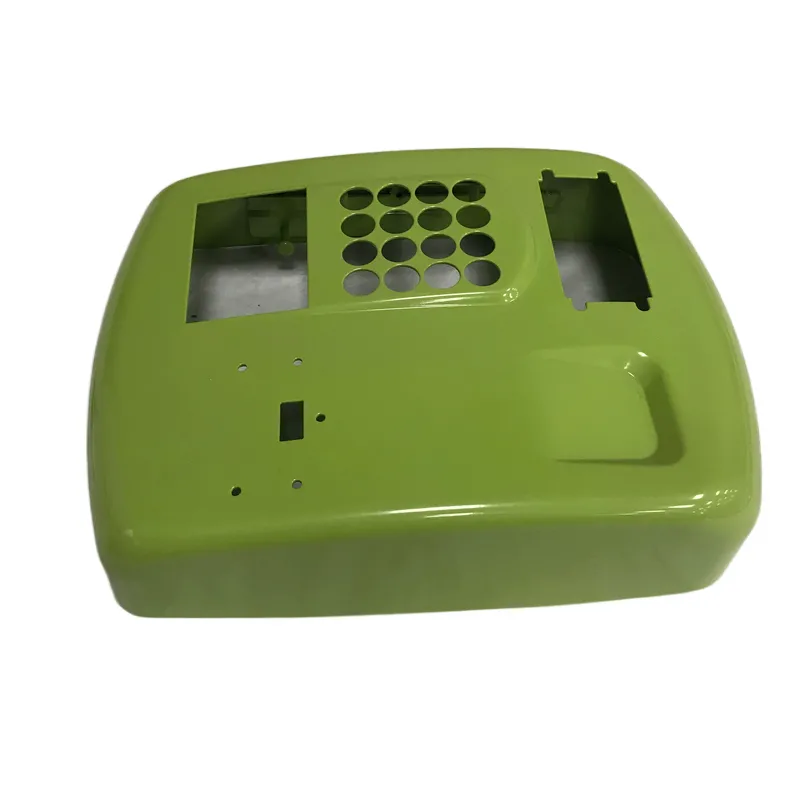

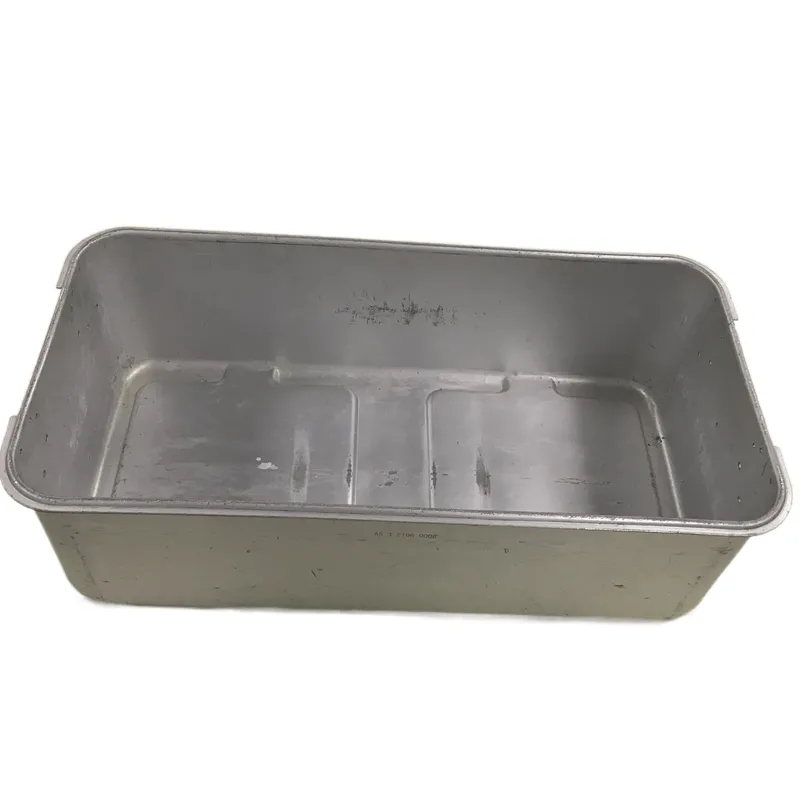

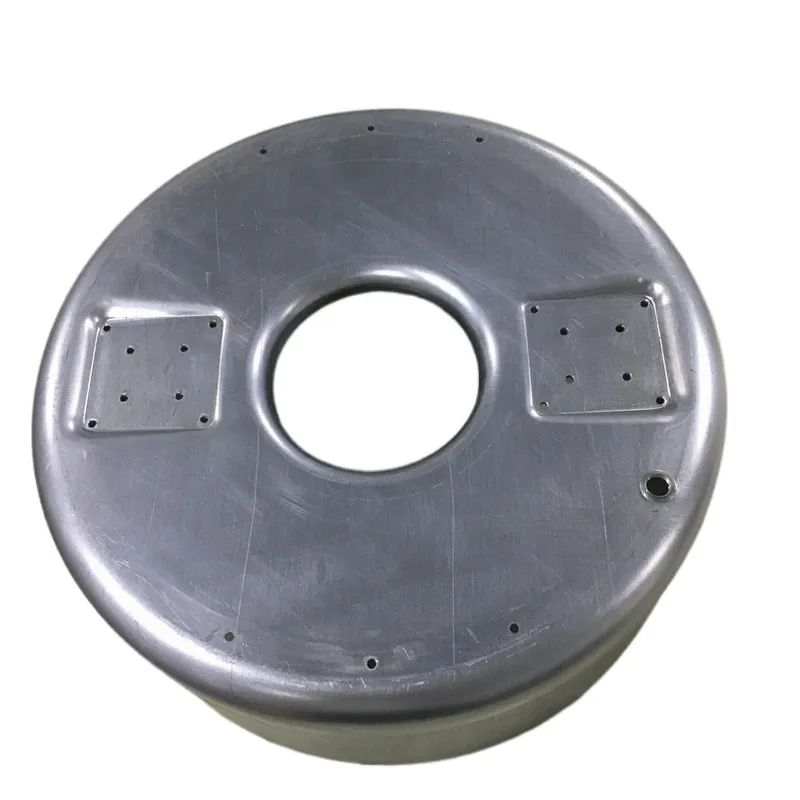

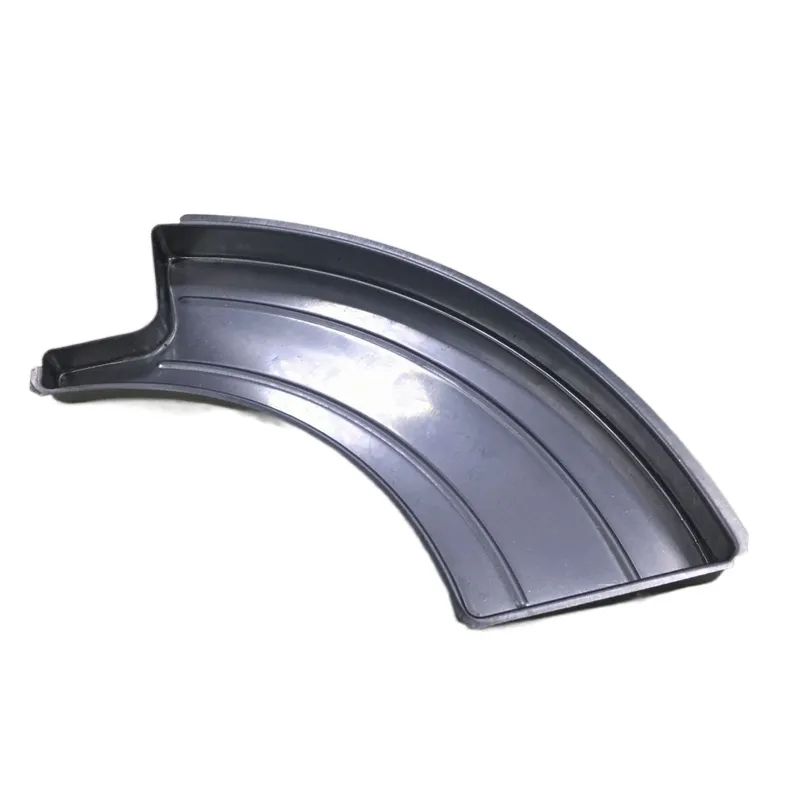

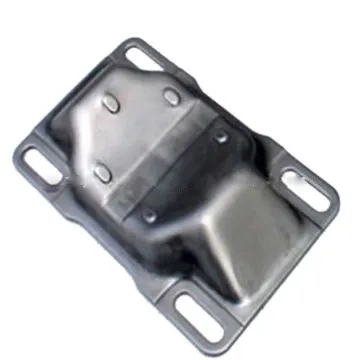

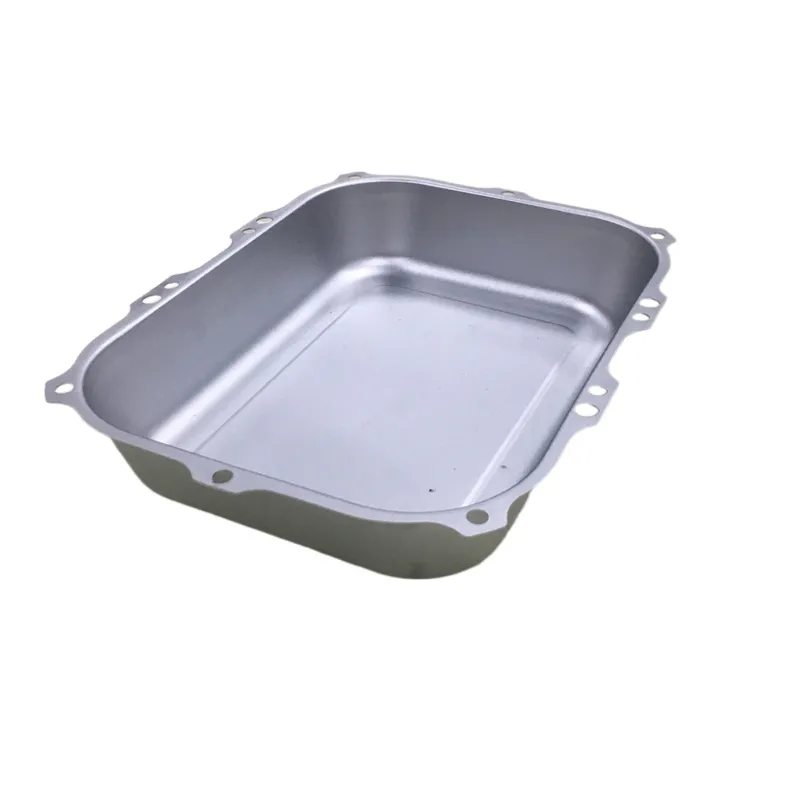

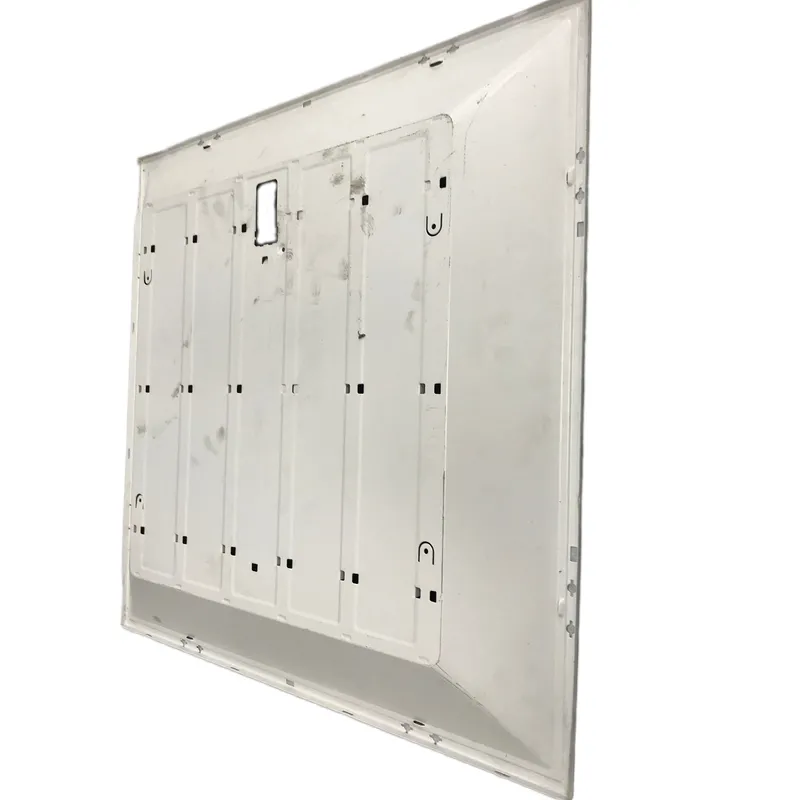

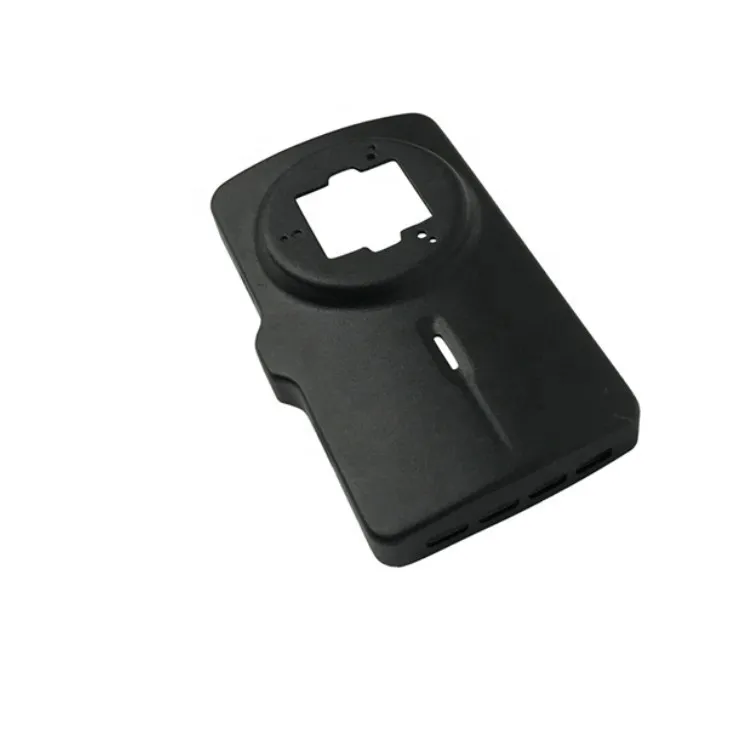

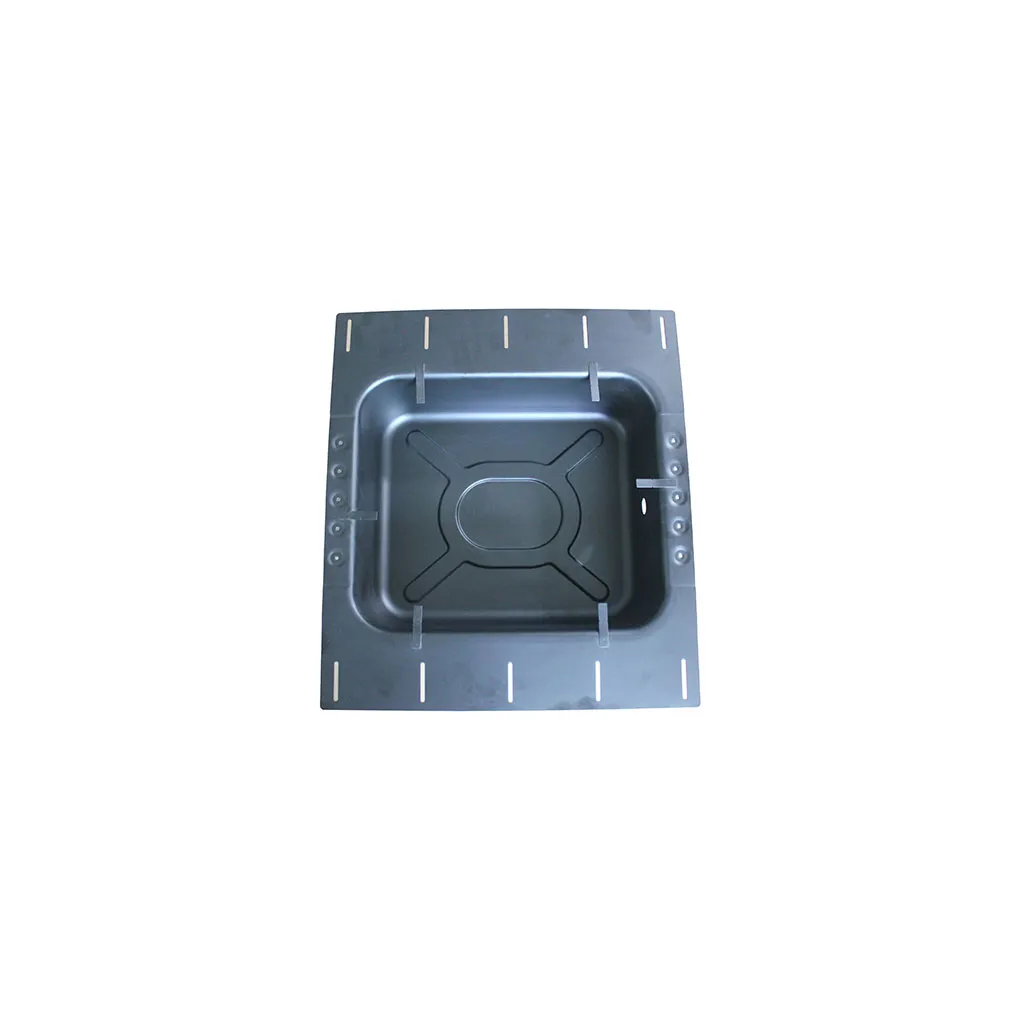

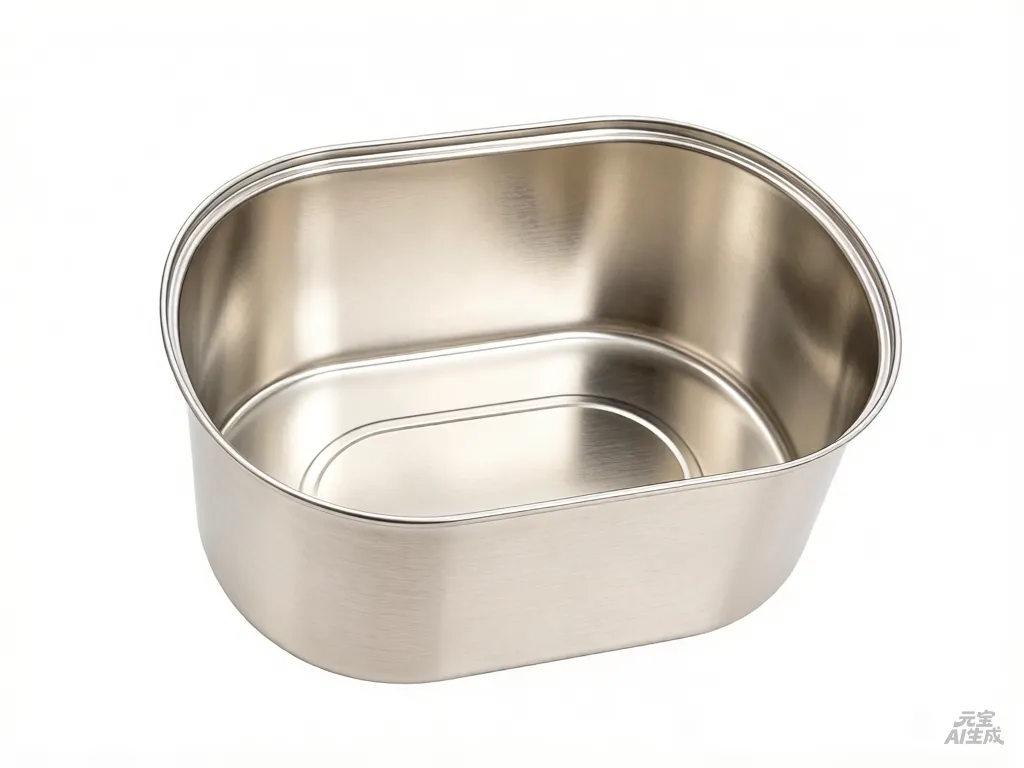

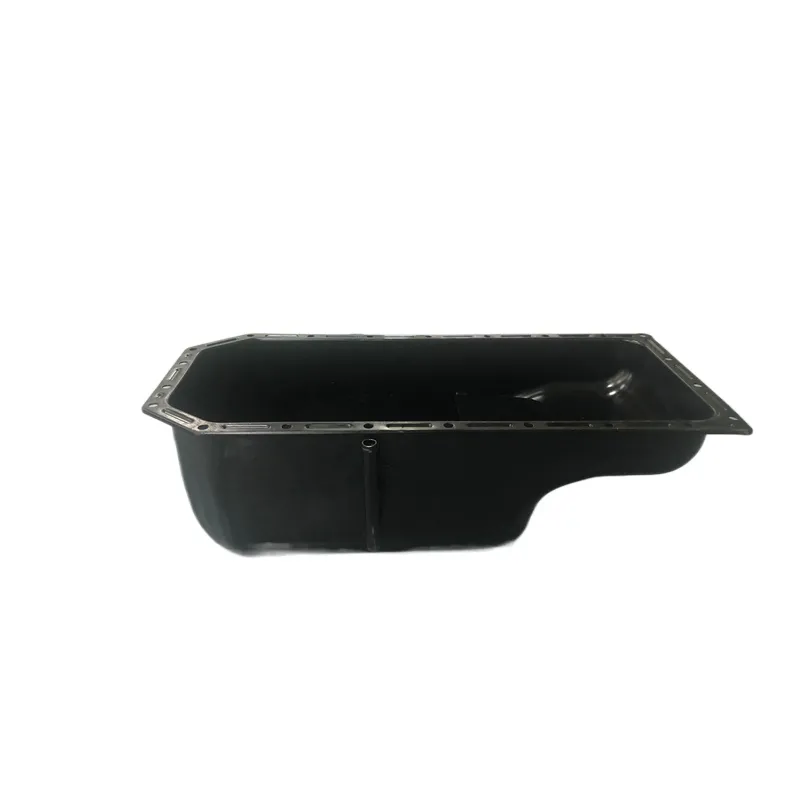

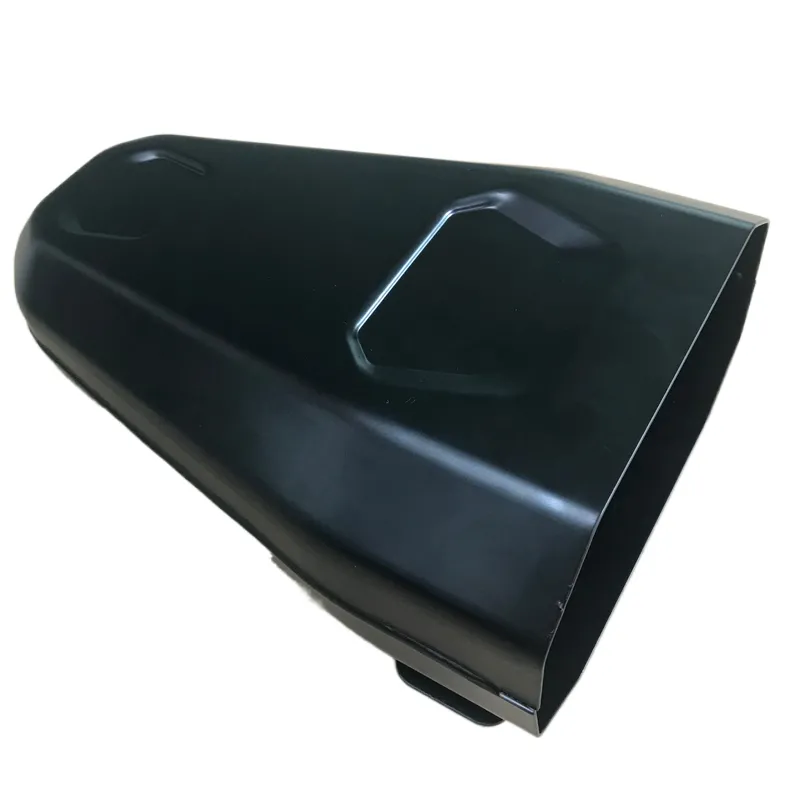

Deep Drawing Products We Manufacture

Standard geometries we run regularly. Send a drawing for anything not listed — custom parts are the majority of what we make.

Process

How a Deep Drawn Part Is Made Here

  • Blank preparation — Coil or disc blanked to diameter and thickness
  • Drawing — Hydraulic press with controlled blank-holder force
  • Multi-step drawing — Up to six stages for deep cylinders and drums
  • Annealing — Inter-stage anneal where the alloy demands it
  • Necking & flanging — Stepped diameters formed in a controlled sequence
  • Finishing — Bead blast, polish, anodize or coat on request
Full capability detail
Laser cutting cell cutting sheet metal

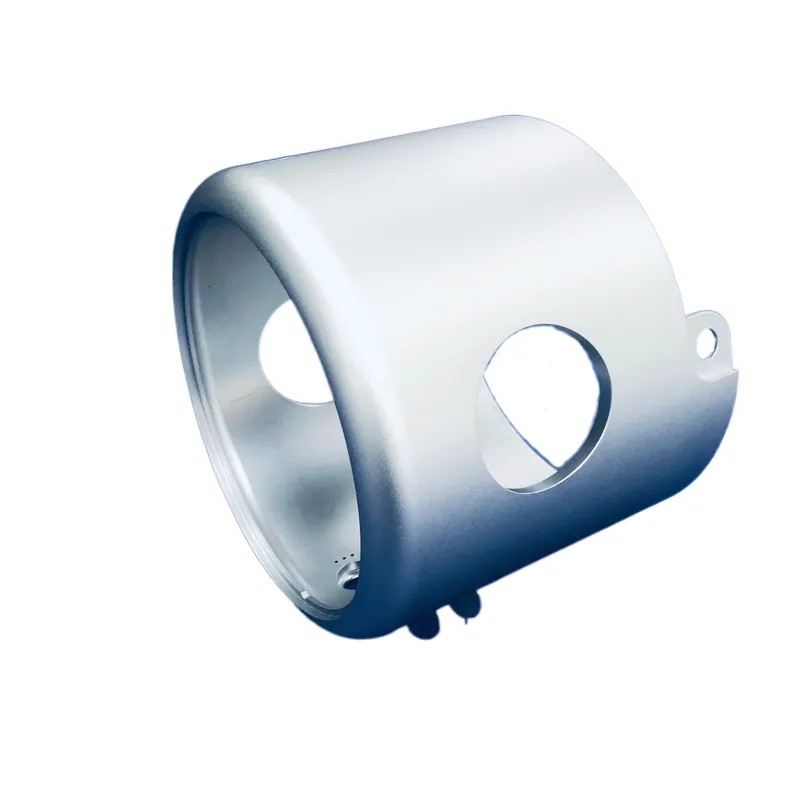

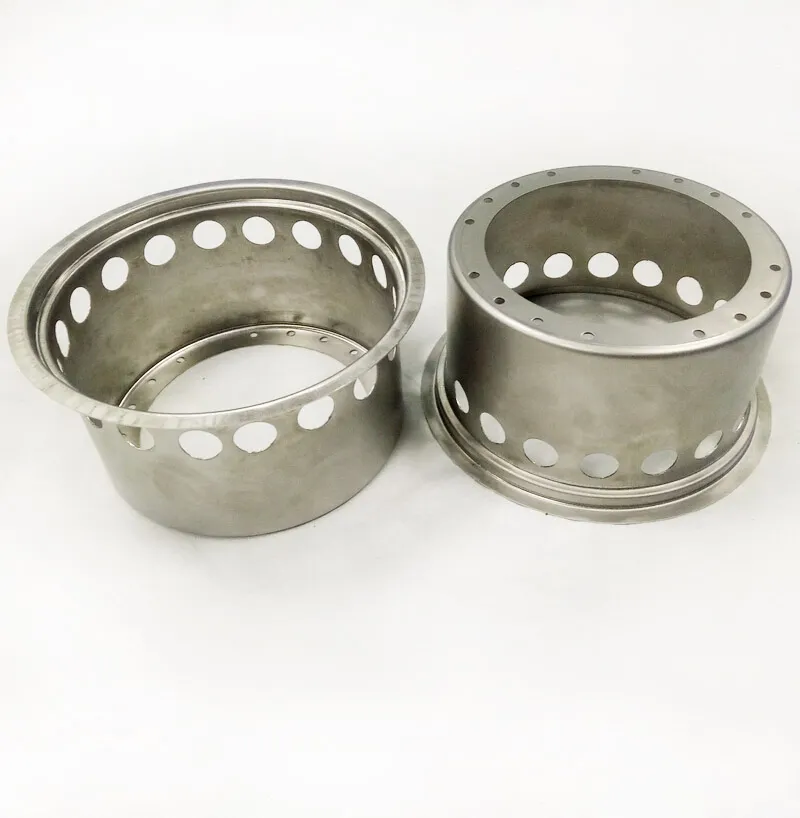

Deep drawn shells
Applications

Where Deep Drawing Parts End Up

Kitchen & cookwarePots, pans, lids, steamers
AppliancesWater tanks, drip pans, shells
Consumer electronicsSpeaker bodies, device shells
Battery & energyCell casings, spacers, shrouds
MedicalSterilisation cups, instrument trays
FurnitureShades, bins, tubular parts

Need a Deep Drawing Part Quoted?

Send a STEP or DXF file — or a sketch with dimensions. We return a firm price within 2 working hours with a manufacturability note attached.
